Power | 60w | 80w | 100w | 120w | 150w | 200w | 250w |
LED Qty(pcs) | 60pcs | 80pcs | 100pcs | 120pcs | 154pcs | 203pcs | 252pcs |
N.W. (kgs) | 2.3kg | 3.4kg | 3.4kg | 4.3kg | 4.3kg | 5.6kg | 6.3kg |
Lamp Size/mm | with 45° reflector: φ310*297mm with 120° reflector: φ350*252mm |
with 45° reflector: φ310*317mm with 120° reflector: φ350*272mm |
with 45° reflector: φ310*317mm with 120° reflector: φ350*272mm |
with 45° reflector: φ310*347mm with 120° reflector: φ350*302mm |
with 45° reflector: φ310*347mm with 120° reflector: φ350*302mm |
with 45° reflector: φ310*397mm with 120° reflector: φ350*352mm |
with 45° reflector: φ310*447mm with 120° reflector: φ350*402mm |
This high bay LED replacement light with 120lm/w high lumen is built with world class LED components and driver and protected from dust and moisture by silicone seals and waterproof connections. Its massive extrusion aluminum heat sink with copper heat pipe doubles the heat dissipation to extend the life of the circuits.
v High efficiency Tai Wan Mean Well Driver
v High Quality Lumileds Chips 3030 2D, up to 130lm/watt, CRI>80
v Universal input voltage from AC90-305V, 50/60Hz
v Safety operating voltage from DC24-DC46V

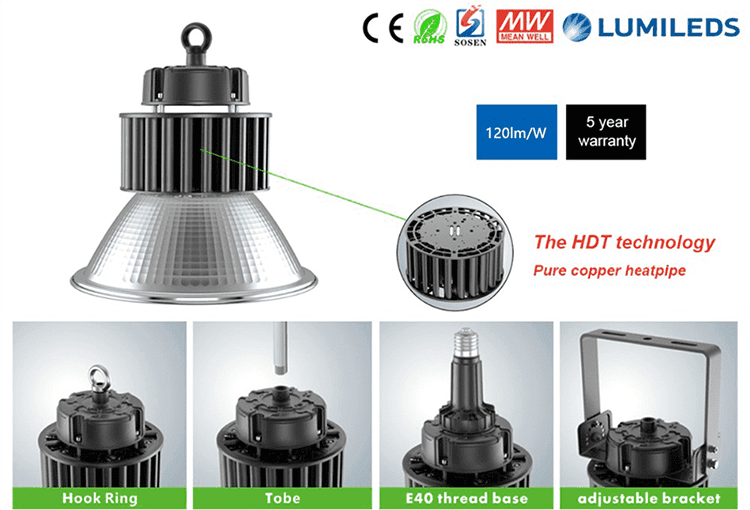

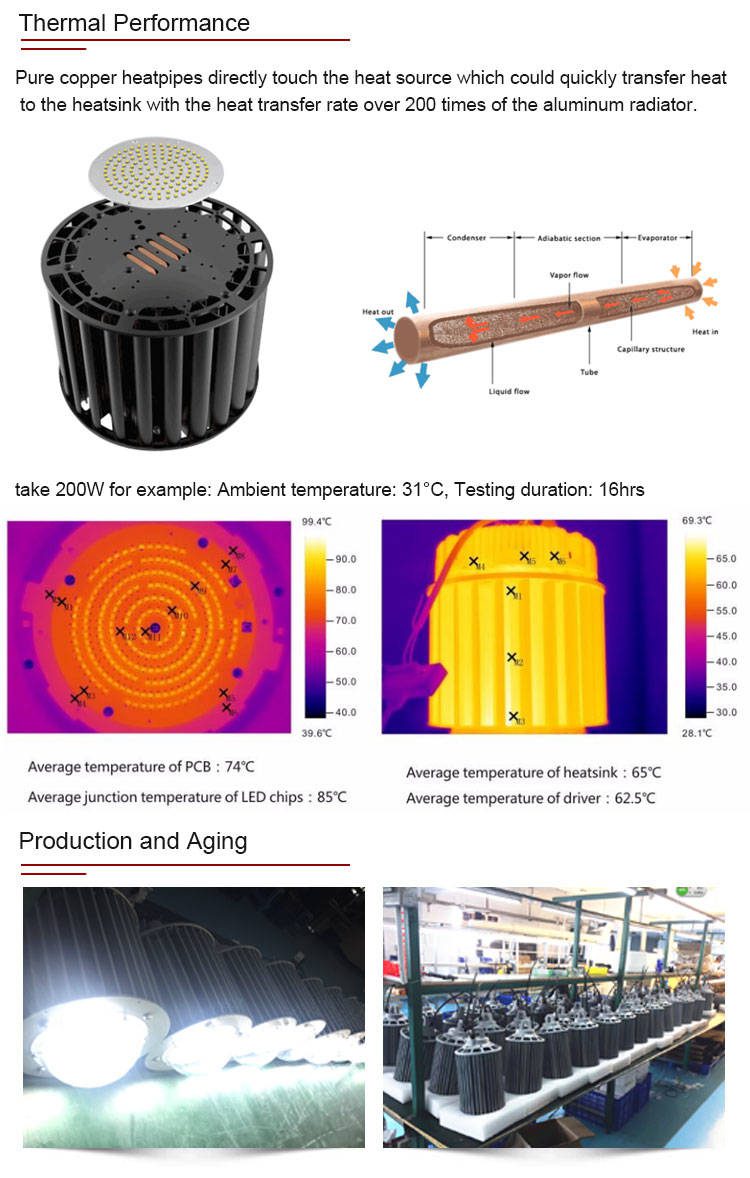

v Copper heat pipe and vertical Aluminum heat sink technology for quicker and stronger heat transmission.
v Multi-angle reflectors make the deploy of lights easier and effective for different building size and floor heights.
v Pass the 4000V high voltage testing by TUV&ETL
v Voltage Leakage is less than 10V during operating
v Durable structure&stable performance
v Comparing to traditional Metal halide lamps can save energy 60%-70%.
v CE/RoHS approval
V Smart function: 0-10V Dimming, PMW signal, Timing optional
Input Power: | 60W | 80W | 100W | 120W | 150W | 200W | 250W |
LED Source: | High Lumen Lumileds3030 Option | ||||||
Drive Brand: | TAI WAN MEAN WELL | ||||||
Input Voltage: | AC100~305V 50/60HZ PF>0.9 | ||||||
Housing Material: | Extrusion of Aluminum & Brass heat conduction | ||||||
Housing Color: | Black/Silver | ||||||
Lamp Size with
45°Reflector: |
φ310*297MM | φ310*317MM | φ310*317MM | φ310*347MM | φ310*347MM | φ310*397MM | φ310*447MM |
Lamp Size with
120°Reflector: |
φ350*252MM | φ350*272MM | φ350*272MM | φ350*302MM | φ350*302MM | φ350*352MM | φ350*402MM |
LED Quantity: | 60pcs | 80pcs | 100pcs | 120pcs | 154pcs | 203pcs | 252pcs |
Luminous Flux:(LM) | 6862 ~ 7173 | 9149 ~ 9564 | 11437 ~ 11956 | 13724 ~ 14347 | 17155 ~ 17935 | 22874 ~ 23912 | 28592 ~ 29890 |
Color Temp: | 2700K~6500K | ||||||
IP Rating: | IP42 | ||||||
Viewing Angle: | 45°/120° Degree Reflector for your option | ||||||
Warranty: | 5 years | ||||||
N.W(KG)/PC: | 2.33KG | 3.41KG | 3.41KG | 4.26KG | 4.26KG | 5.63KG | 6.33KG |
