| Quick Details | |
| Color Temperature(CCT): | 2700-6500, 3000K /4000K /5000K /5700K |

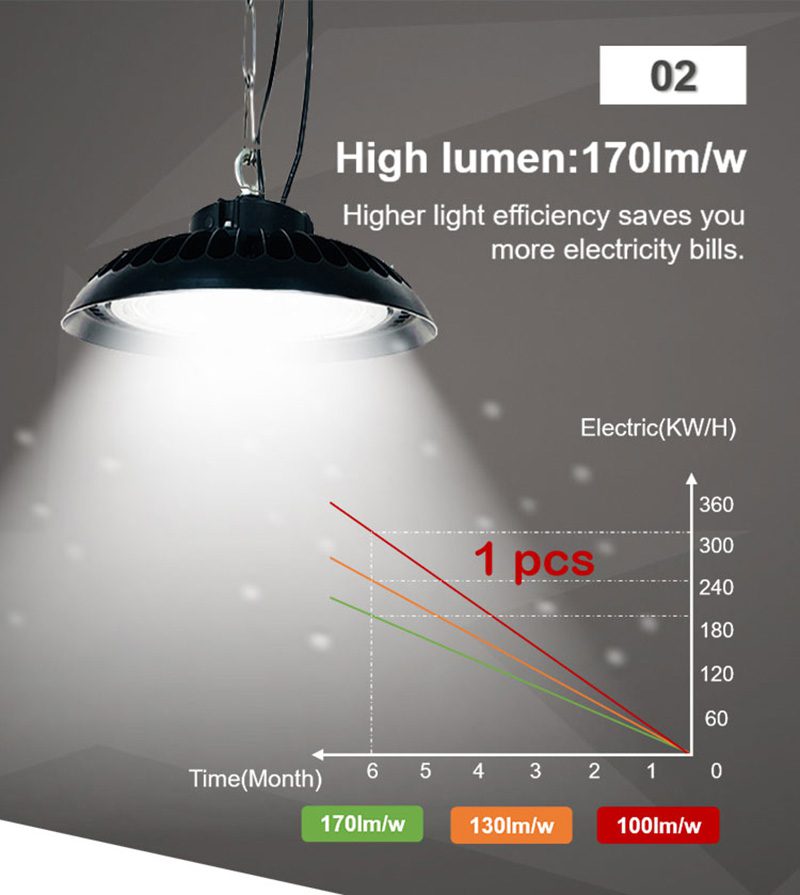

| Lamp Luminous Efficiency(lm/w): | 170, 170 |

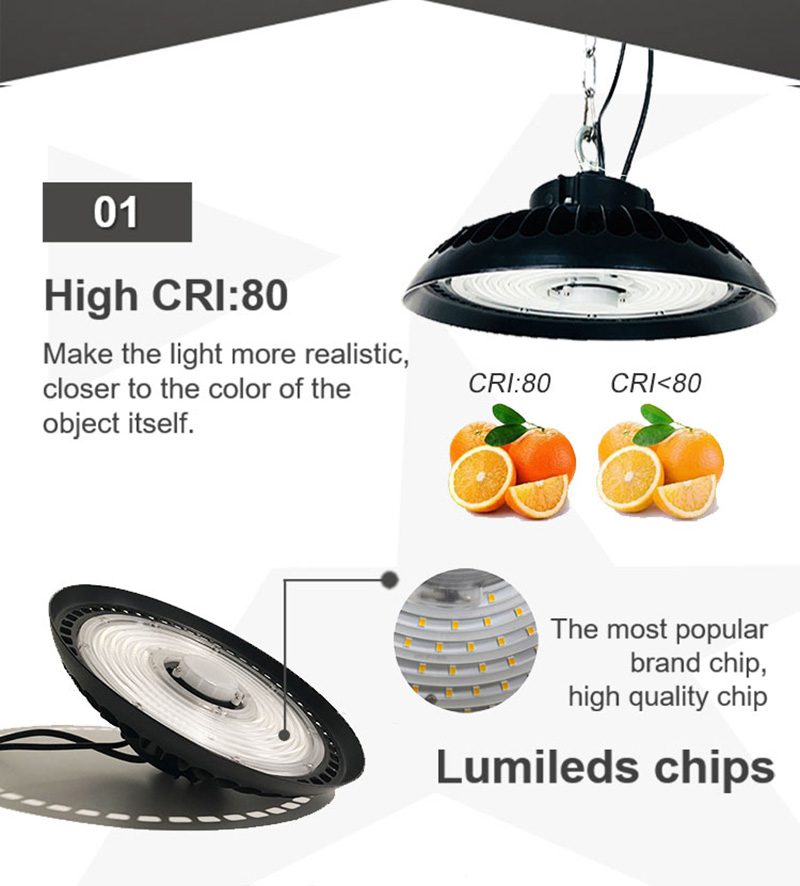

| Color Rendering Index(Ra): | 70 |
| Support Dimmer: | YES |
| Lighting solutions service: | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout |
| Input Voltage(V): | 100-277 |
| Lamp Luminous Flux(lm): | 17000 |
| CRI (Ra>): | 70/80/90 |
| Working Temperature(℃): | -30 – 45 |
| Working Lifetime(Hour): | 70000 |
| Lamp Body Material: | Aluminum Alloy |
| IP Rating: | IP65, IP65 Waterproof |
| Certification: | ce, EMC, ETL, LVD, RoHS, Reach |
| Place of Origin: | Guangdong, China |
| Brand Name: | UNIKE LED HIGH BAY |
| Model Number: | UNK-HB100S5 ufo high bay light |
| Application: | Warehouse, commercial and industrial lighting |
| Light Source: | LED |
| Warranty(Year): | 5-Year |
| Keyword: | led high bay light 18000 lumen |
| Lamp Power: | 100W LED high bay light |
| LED Chip: | SMD 3030 LUMILEDS |
| CCT: | 3000K /4000K /5000K /5700K |
| Housing: | Die – casting aluminum and PC lens |
| LED Light Source: | USA Lumileds |
Bright White 170lm/w Waterproof IP65 led high bay light for furniture factory
Product Description
Click to get more details and better price !
Specifications
| General Performance |
| P/N | UNK-HB 100S5 | UNK-HB 150S5 | UNK-HB 200S5 |
| Input Power | 100W | 150W | 200W |
| Lumen Output | 16000~17500LM | 24000~26250LM | 32000~35000LM |
| Light Efficiency | 130~175lm/w | ||
| Color Temperature | 3000K/4000K/5000K/5700K/6500K | ||
| LED Source | LUMILEDS 3030 SMD / CREE 3030 SMD / SANAN 2835 SMD | ||
| Electrical | |||
| Power Factor | >0.95 |
| Input Voltage | AC100-277V / AC200-240V / AC200-480V, 50/60HZ |
| THD | <20% |
| Physical | |
| Net/Gross Weight | 2.1kgs/2.7kgs | 3.1kgs/3.9kgs | 4.5kgs/5.5kgs |
| Lamp Dimention | 280*160mm | 330*186mm | 380*186mm |
| Packing(1pc/ctn) | 325*325*175mm | 375*375*185mm | 425*425*185mm |

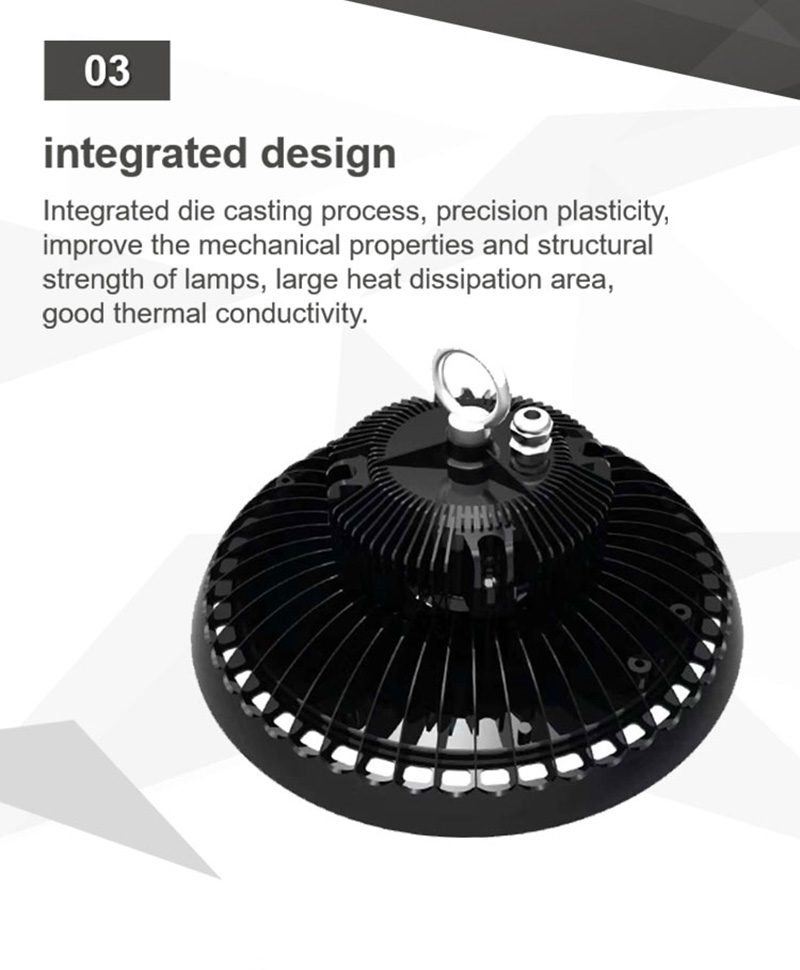

| Housing | Die casting Aluminum + PC lens | ||
| Beam Angle | 60°, 90°, 120° | ||

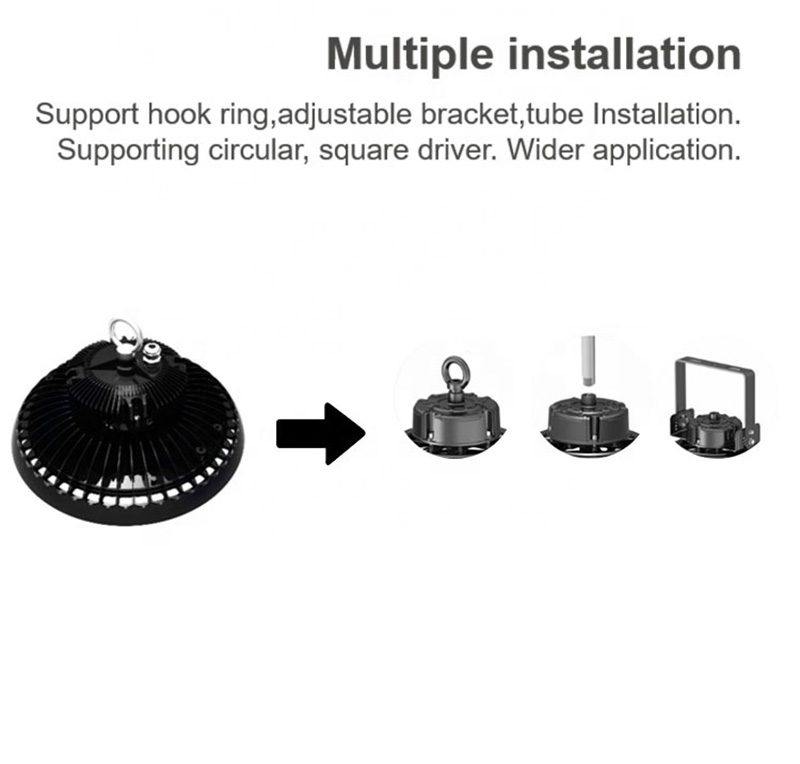

| Installation | Ceiling, suspend, pipe mounted(optional) | ||
| Operation | -35°C~55°C | ||
| Humidity | 20%~85%, non-condensing | ||
| Finish | black/white | ||
| EET | A+ | ||
| Waterproof Rating | IP65 | ||
| Certificate | |||
| Certificate | CE, ETC, CETL, DLC, LM80, LM79, TM21 | ||
| Material Usage | ROHS compliant | ||
| Storage Temperature | Class ll | ||
| LED Class | LM80 rated to 50,000 hours | ||
| Application | Indoor, Outdoor, Dry/Wet location | ||
| Warranty Time | 5 Years | ||
| power | 100w | 150w | 200w |
Click to get more details and better price !
| Power | Carton size cm | G.W kg | pc/carton | 20GP | 40GP |
| 100w | 33*33*17cm | 2.7 KG | 1 | 1631PCS | 3373PCS |
| 150w | 38*38*18cm | 3.9KG | 1 | 1116PCS | 2268PCS |
| 200w | 43*43*19cm | 5.5KG | 1 | 950PCS | 1965PCS |
why choose us ?
Customer praise
Click to get more details and better price !
Company Information
Shenzhen UNIKE Technology Limited is a high-tech enterprise established in 2010.specialized in LED lighting products,integrated with R&D,production and sales in one.UNIKE focuses on lighting solution of both outdoor and indoor(mainly produces LED street light,LED floodlight.LED high baylight),insists on high efficiency,green energy.and environment friendly,to be the pioneer of energy-saving lamps in the new era.UNIKE led products have obtained all kinds of domestic and foreign authority certification,such as CE,RoHS,FCC,TUV,etc.,are widely used on street,tunnel,bridges,wharf,billboards.landscape,architecture,city lightening,warehouse,workshop,shopping mall,etc.,and exported a lot to North America,Europe and others such as Australia,New Zealand.Japan,Korea,and Southeast Asian countries.UNIKE is deeply recognized and favored by customers from all over the world.We have excellent quality control throughout all stages of production,including in-coming materials control,in-process quality monitoring.out-going inspection and relative testing.Our engineers have more than 10 years of LED experience and our reliable sales team will provide high quality technical products and services to ensure you an enjoyable business experience.
Click to get more details and better price !
Our certificate
FAQ
RFQ
UNIKE LED Lights Warranty:
We do the warranty not from a guarantee words or paper, but from our quality confidence and responsibility to our customers
—–(1) If driver failed, we’ll send new driver.
—–(2) If LED failed, we’ll send new LED.
—–(3) Unclear reason, we’ll sent full new set. FAQ for UNIKE LED Lights:
—–(1) If driver failed, we’ll send new driver.
—–(2) If LED failed, we’ll send new LED.
—–(3) Unclear reason, we’ll sent full new set. FAQ for UNIKE LED Lights:
Q1. Can I have a sample order for LED Light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for your LED Lights?
A: 1~50pcs(3 days)51~200pcs(7 days)201~100pcs(10 days)>1000pcs(Agreement)
Q3. Do you have any MOQ limit for LED Light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the LED Lights and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order for LED Light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and sends the payment for formal order.
Finally we arrange the production.
Q6. Is it OK to print my logo on LED Light product?
A: Yes. Please inform us formally before our production and confirm the designQ7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
A: Yes. Please inform us formally before our production and confirm the designQ7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
