50W to 500W industrial led linear high bay light for warehouse parking garage led lighting

This is a high quality linear high/low-bay luminaire designed for a wide variety of applications including factory, warehouse and retail.
Available from 50W to 250W in single format or up to 500W as twin fixtures. It offers a wide range of optics to suit any environment.
The luminaire is available with a wide variety of options including multi-step dimming motion sensor, emergency pack, DALI or 0-10V dimming.

Add to quote

70 People watching this product now!

Quick Details
Lamp Power:	50/60/80/100/150/200/250W
Application:	warehouse, hallway, passage,aisle, market, workshop, plant, logistic center, indoor stadium, tennis/badminton court
Color Temperature(CCT):	3000k-6500k optional
Color Rendering Index(Ra):	70/80 optional
LED Type:	SMD 2835/SMD3030
Driver Brand:	Philips/Mean Well/LIFUD/DONE/UNIKE quality driver
Smart Functions:	dimming/DALl /emergency lighting/motion/ZIGBEE intelligent control
Lamp Luminous Efficiency(lm/w):	140-150LM/W
Input Voltage(V):	AC100-277V/AC100-347V 50/60HZ
Working Lifetime(Hour):	70000

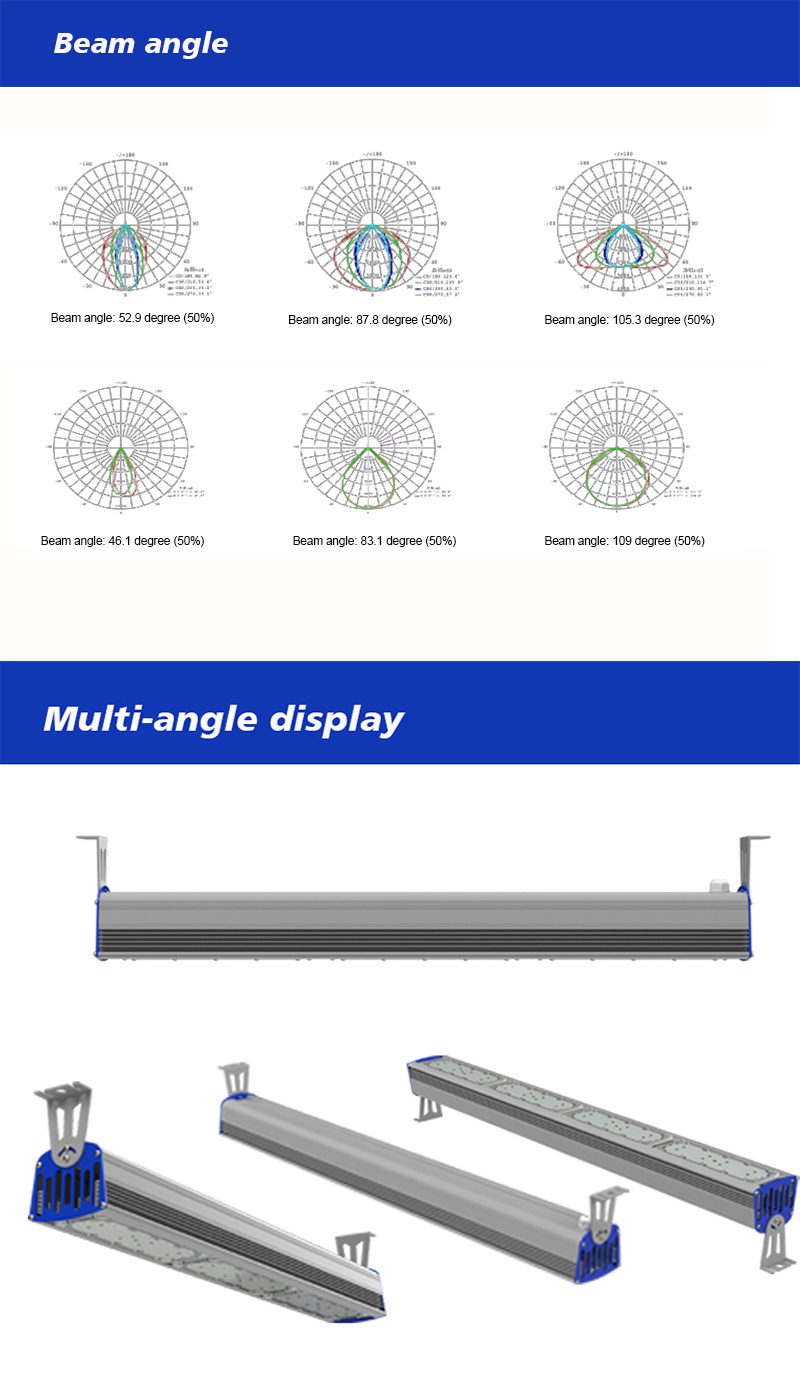

Beam angle:	60°/90°/120°/30°70°/60°120°/70°*140°optional
Protection:	IP66, IK08
Lamp Body Material:	Aluminum alloy
Certification:	CCC, CE, EMC, FCC, LVD, RoHS
Warranty:	5-Year

Specification

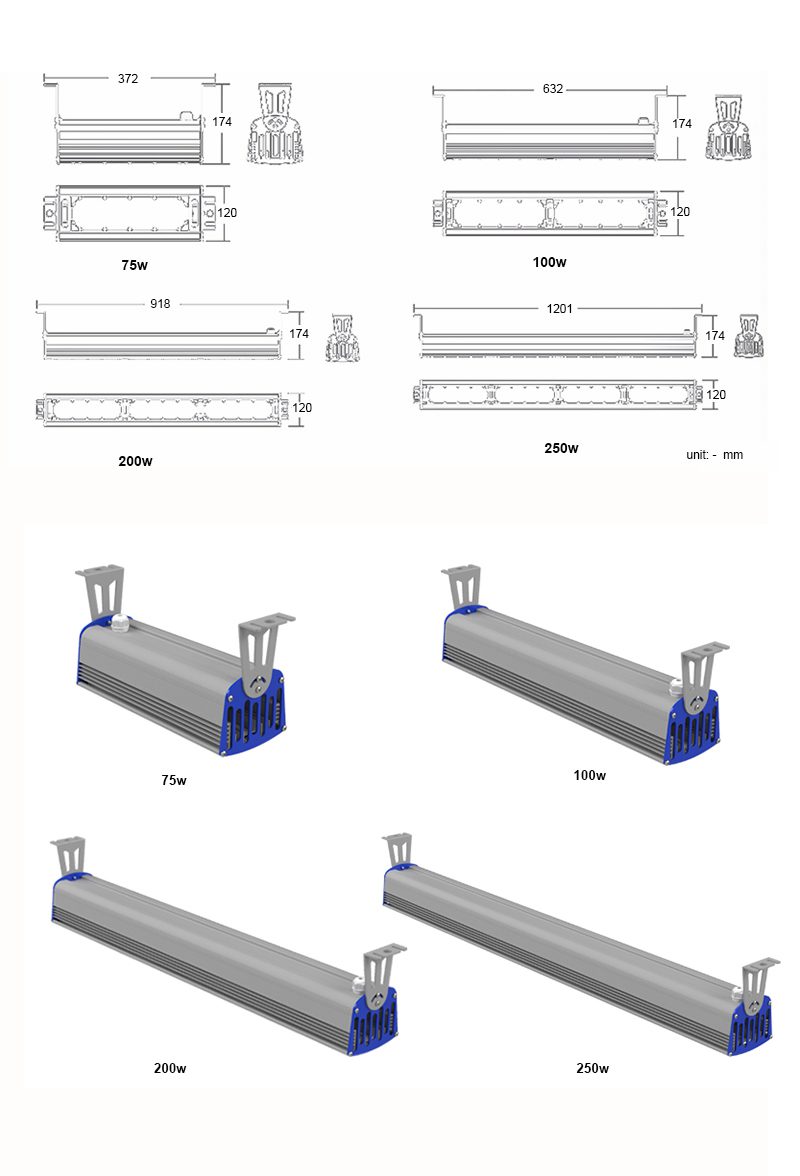

Model	UNK-LL075A	UNK-LL100A	UNK-LL150A	UNK-LL200A	UNK-LL250A
Power	75w	100w	150w	200w	250w
Number of modules	1 module	2 modules	2 modules	3 modules	4 modules
Lumen	10500	14000	21000	28000	35000
lnput Voltage	AC100-277VAC/100-347V 50/60Hz
Eficacy	Typical:145Lm/W, up to 155Lm/W
CRl	Typical: 70, optional:80/90
THD	<20%
IK/IP	IP66/IK08
Light Source	SMD 2835 or SMD 3030
Body Color	White/silver grey
Anti-surge level	6KV
Radiator Material	Aluminum Alloy 6063 T5
Storage Temperature	-40℃~70℃
Operating Temperature	-35℃~50℃
Beam Angle	60°/90°/120°/3070°/60120°/70*140°
Smart Function	0-10V dimming/DALl dimming/emergency lighting/motion microwave induction/ZIGBEE intelligent control
lnstallation MethodS	Surface Mounted, Suspended,Suspended pole.
Lifespan	70000Hrs
