| Quick Details | |
| Color Temperature(CCT): | 3000K/4000K/5000K/5700K/6500K |
| Lamp Luminous Efficiency(lm/w): | 130-145lm/w |
| Color Rendering Index(Ra): | 75/80 |
| Support Dimmer: | YES |
| Lighting solutions service: | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout |
| Lifespan (hours): | 70000 |
| Light Source: | LED |
| Input Voltage(V): | AC100-277V |
| Lamp Luminous Flux(lm): | 14000 |
| CRI (Ra>): | 70 |
| Working Temperature(℃): | -30~45 |
| IP Rating: | IP65 |
| Certification: | ce, EMC, LVD, RoHS |
| Warranty(Year): | 3-5 |
| Place of Origin: | Guangdong, China |
| Brand Name: | UNIKE-LED street light |
| Model Number: | UNK-100F2-SL |
| Beam Angle(°): | 70°*140° with 30° polarized |
| Application: | outdoor area / street / road lighting |
| Color: | Light Grey |
| Power Supply: | AC |
| Rated Power: | 100w street light led |
| Power Options: | 50W, 60W, 80W, 100W, 150W, 200W |
| LED Chip: | SMD 3030 Lumileds |
| Driver Brand: | Mean Well, SOSEN, MOSO, Lifud |
| Power factory: | ≥0.95 @230VAC |
| Surge Protect: | SOSEN 10KV surge protect |
| Smart Function: | Photocell optional |
| IK Grade: | IK09 |
| Lamp Body Material: | Die casting Aluminum Alloy |
| Keyword: | Outdoor led street light |
| Working Lifetime(Hour): | 70000 |
| Luminous Efficacy(lm/w): | 140 |
Skilful manufacture 200watt lighting 140lm/w mean well driver 80w smart luces 100w street led light
| Model# | Power | Lumens | LampSize/MM | Interface size |
| UNK-SL50F2 | 50w | 7000lm | 503x169x86 | φ50mm |
| UNK-SL100F2 | 100w | 14000lm | 568x210x88 | φ60mm |
| UNK-SL150F2 | 150w | 21000lm | 659x250x87 | φ60mm |
| UNK-SL200F2 | 200w | 28000lm | 734x300x108 | φ60mm |
| Advantages: | |||||||||||||||

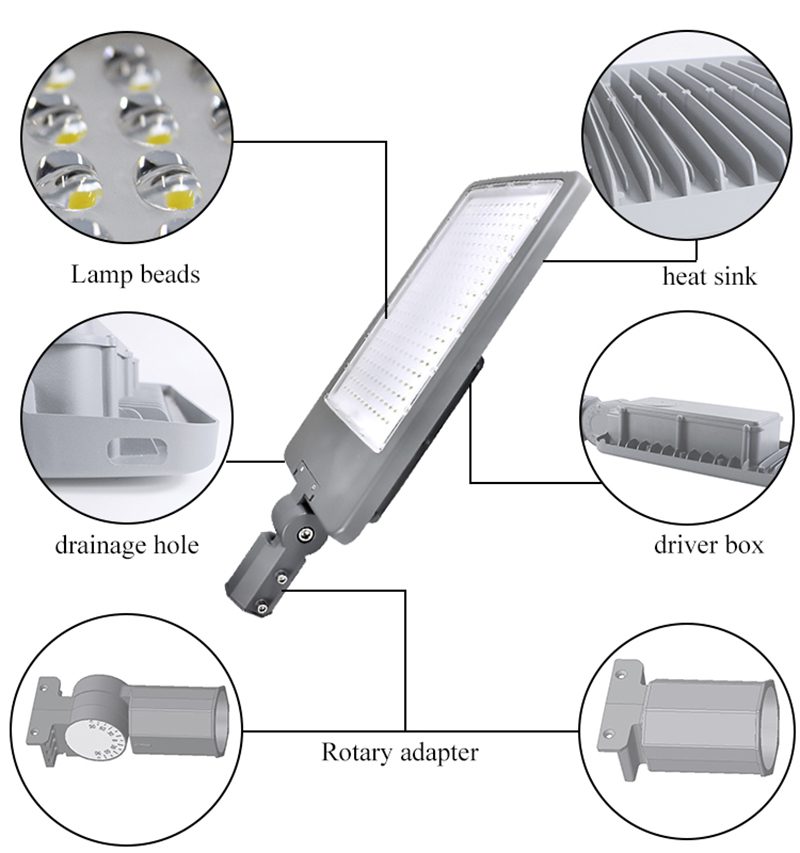

| Housing: | Die casting aluminum + PC lens | CCT: | 2700-6500K optional | ||||||||||||
| Protection: | IP65 | CRI(Ra): | 70 and 80 optional | ||||||||||||
| Voltage: | Universal wide voltage AC100~277V, 50/60Hz | PF: | ≥0.95 @230VAC | ||||||||||||
| Beam Angle: | 70°*140° with 30° polarized | Warranty: | 3-5 years | ||||||||||||
| LED chip: | Quality Brand Chips Lumileds/CREE 3030 SMD optional | Driver: | Constant current & Isolated Driver | ||||||||||||
| Luminous Flux: | 130-145LM/W | Power: | 50-200W available | ||||||||||||
| Get promotional prices
|
| Get promotional prices
|
—–(1) If driver failed, we’ll send new driver.
—–(2) If LED failed, we’ll send new LED.
—–(3) Unclear reason, we’ll sent full new set.FAQ for UNIKE LED Lights:Q1. Can I have a sample order for LED Light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for your LED Lights?
A: 1~50pcs(3 days)51~200pcs(7 days)201~100pcs(10 days)>1000pcs(Agreement)
Q3. Do you have any MOQ limit for LED Light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the LED Lights and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order for LED Light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and sends the payment for formal order.
Finally we arrange the production.
A: Yes. Please inform us formally before our production and confirm the designQ7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
