| Quick Details | |
| Color Temperature(CCT): | 2700-6500K, warm white/ natural white / cool white |
| Lamp Luminous Efficiency(lm/w): | 140 |
| Color Rendering Index(Ra): | 70 |
| Support Dimmer: | YES |
| Lighting solutions service: | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 |
| Light Source: | LED |
| Input Voltage(V): | 100-277V 50/60HZ |
| Lamp Luminous Flux(lm): | 14000 |
| CRI (Ra>): | 70 |
| Working Temperature(℃): | -80 |
| IP Rating: | IP65 |
| Certification: | ce, ETL, RoHS |
| Warranty(Year): | 5-Year |
| Place of Origin: | Guangdong, China |
| Brand Name: | unike |
| Model Number: | UNK-SL100D |
| Beam Angle(°): | Type 3 / Type4 / Type 5 polarized |
| Application: | ROAD |
| Color: | Brown |
| Power Supply: | AC |
| Lamp Body Material: | Aluminum Alloy |
| Lamp Power(W): | 100 |
| Product name: | led street light 60w 80w 100w 150w 250w 300w |
| LED chip: | Quality Brand Chips Lumileds 5050 SMD optional |
| Housing: | High heat-conductive Aluminum + PC lens |
| Protection: | IP65 Waterproof |
| Voltage: | Universal wide voltage AC90~305V, 50/60Hz |
Project case

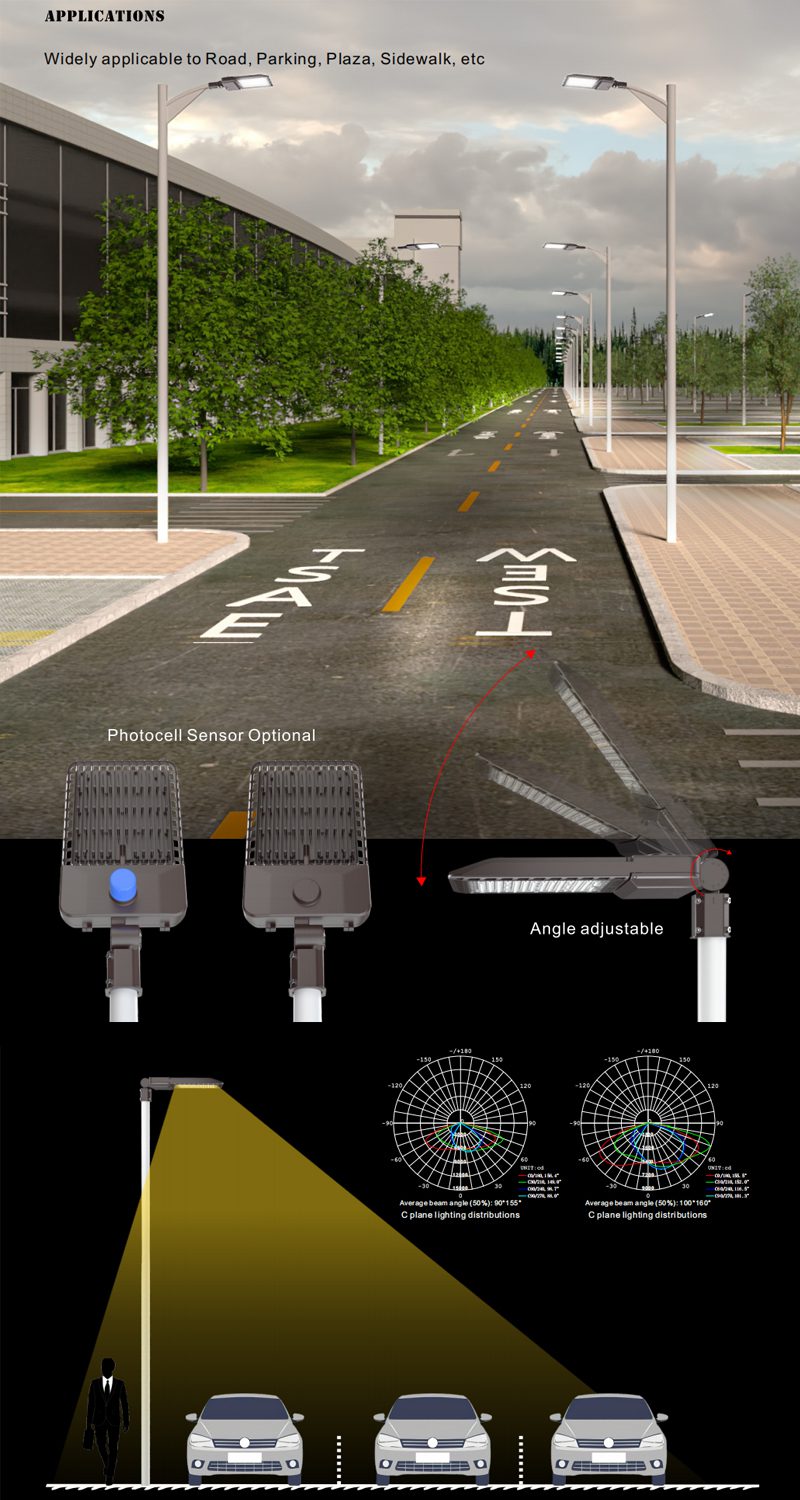

parks, courtyards, etc.
day/night control
PC material lens has high transmittance and low light attenuation. Compared with glass lens, it is not easy to damage.

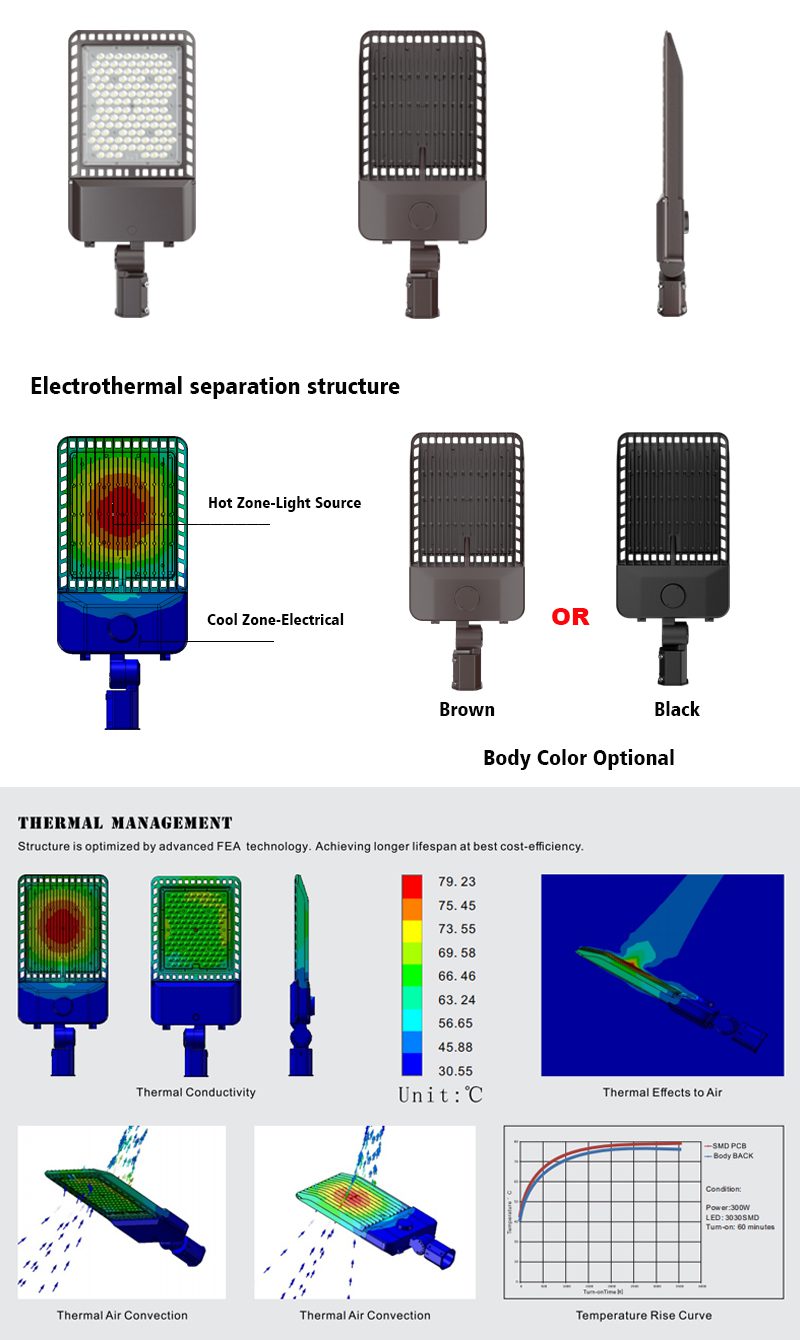

Fin Heat Dissipation Technology
corrosion resistance.

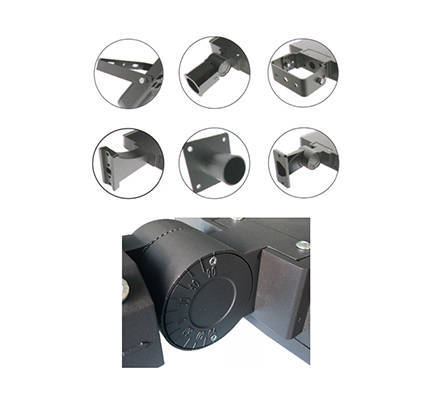

scale, flexibly adjusting the angle according to different needs.
Product Name | led street light |
Material | aluminum housing+ PC lens |
Power | 100w-300w |
Voltage | 100v-277v 50/60hz |
Beam angle | TYPE 2/3/4/5 optional |
Model | UNK-SL100D |
Warranty | 5 years |
Size introduction and size picture
Module | Lights size | N.W | Packing size | G.W | MOQ |
1 module | 316*297*57MM | 4.8KG | 53*37*13CM | 5.4KG | 5pcs |
2 modules | 454*297*57MM | 6.2KG | 66*37*13CM | 7.0KG | 5pcs |
3 modules | 616*308*57MM | 8.1KG | 82*37*13CM | 9.1KG | 5pcs |
monitoring. out-going inspection and relative testing.Our engineers have more than 10 years of LED experience and our reliable sales team will provide high quality technical products and services to ensure you an enjoyable business experience.
—–(1) If driver failed, we’ll send new driver.
—–(2) If LED failed, we’ll send new LED.
—–(3) Unclear reason, we’ll sent full new set.FAQ for UNIKE LED Lights:Q1. Can I have a sample order for LED Light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time for your LED Lights?
A: 1~50pcs(<5 days)51~200pcs(7 days)201~100pcs(10 days)>1000pcs(Agreement)Q3. Do you have any MOQ limit for LED Light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the LED Lights and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order for LED Light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and sends the payment for formal order.
Finally we arrange the production.
Q6. Is it OK to print my logo on LED Light product?
A: Yes. Please inform us formally before our production and confirm the design
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
